• 8 Ports FE PoE with 2 GE Uplink Ports and 1 SFP Slot Switch 1

8 Ports FE PoE with 2 GE Uplink Ports and 1 SFP Slot Switch

LW-71121
Add to inquiry box
Production information
8 Ports FE PoE with 2 GE Uplink Ports and 1 SFP Slot Switch
Download file


  • Compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Standard
  • 8x10/100Mbps  / 2x10/100/1000Mbps uplink / 1x SFP , support Auto-mdi/mdix
  • Support 4K MAC address
  • Support EEPROM configuration
  • Support IEEE802.3 af/at mode
  • Support switch speed limiting function
  • All ports support 3KV surge protection
  • Support Stack and QoS
  • All port support IEEE 802.3x Half-duplex flow control and full duplex back-pressure mode
  • Non-blocking Switching schema , speed forwarding and maximum throughput filtering datagram
  • Support MAC Address learning to automatically adjust the transmission mode and transmission rate
  • LED indicators for power supply, link and activity
  • Built-in power
MODEL LW-71121
Interface 8 FE RJ45（All of the ports support auto MDI/ MDIX）
2 GE RJ45 +1 SFP
Network Media 10BASE-T: Cat3、4、5 UTP（≤100 meters）
100BASE-TX: Cat 5 and more UTP（≤100meters）
Charateristics Bandwidth：3.6Gbps
Buffer Memory：2.75M
MAC Address：4K
Protocol & Standard IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.3af /IEEE802.3at
LEDs Indicator Power, Act/Link
Power Max Power：150W
PoE Power：15.4W/ 30W（1/2+, 3/6-）
AC110V - 240V/ 50-60Hz power input

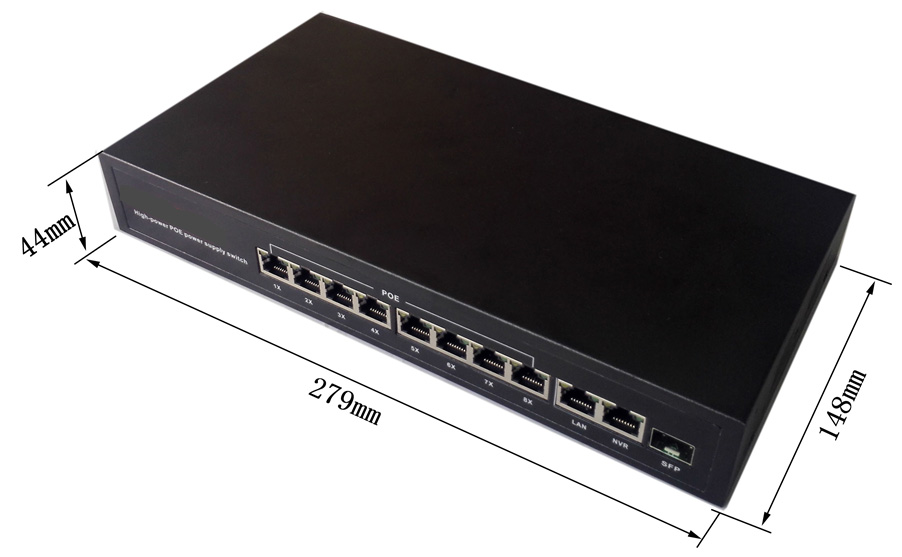

Dimension 279 x 148 x 44 mm
Working Environment Operating Temperature : -10 ℃ ~70 ℃
Storage Temperature : -40 ℃ ~70 ℃
Working Humidity : 10%~90% does not condense
Storage Humidity : 5%~95% does not condense
Weight 1.52kg
